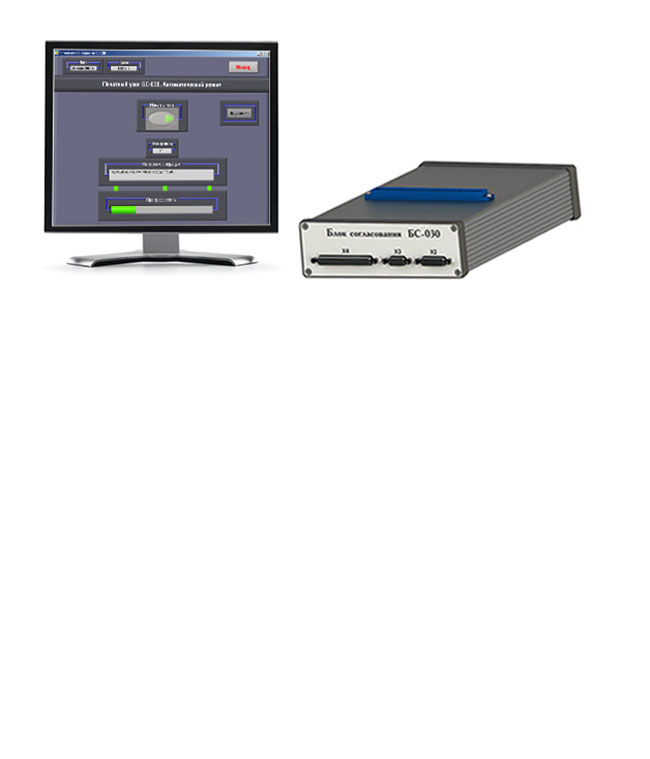

The system has been designed and developed for automated testing of assembled printed circuit boards (PCB) and electrical modules. The system consists of matching modules and control and measurement hardware based on National Instruments PXI platform. The system allows testing of assembled PCB and electrical modules both in automatic and manual modes.

Features :

• Automated control checking and measurement hardware availability
• Input signal generation and analyze the response from units after the test
• Visualization of measuring parameters for the units after the test
• Capability to break the test procedure
• Testing progress visualization
• Capability to configure the testing parameters
• Assembled PCB malfunction place localization when errors are occurred during the test
• Testing of some parts of assembled PCB y high current until 30 A
• MS word report generation at the end of the test
